In the realm of operating systems, Linux stands tall as a potent tool, serving a multitude of purposes, both personal and professional. It holds a unique prowess in networking, facilitating seamless connections to the internet and various networks. Central to Linux networking lies the concept of routing, a pivotal mechanism governing the transmission of data between disparate networks. This discourse delves into the art of adding routes in Linux, replete with insightful examples and pertinent subtopics.
The Essence of Routing
Routing unfolds as the art of directing data packets from one network to another, with Linux’s take on it revolving around steering data packets between network interfaces based on their destination IP addresses. This dynamic process hinges on routing tables, repositories of vital route information. These routes are defined by the amalgamation of destination IP addresses, network masks, and gateways – the nexuses dictating packet forwarding. The routing table, an oracle of sorts, is consulted to determine the most optimal route for each packet based on its destination IP.
The Why Behind Adding Routes
The rationale for adding routes in Linux is multifaceted:
- Connecting to Remote Networks: When the need arises to link up with a remote network, the addition of a route becomes paramount. This becomes especially true when the remote network isn’t directly tethered to your local network;
- Performance Enhancement: A well-placed route can serve as a performance booster. For instance, if a sluggish link obstructs communication with a remote network, judiciously adding a route can channel data through a faster conduit;
- Resolving Routing Quandaries: In scenarios where multiple routes to the same network coexist in the routing table, conflicts can emerge. To quell these conflicts, the introduction of a route helps establish a preferred pathway.
Navigating the Route Addition Terrain
The task of adding a route in Linux encompasses two methods: utilizing the venerable `route` command and its contemporary counterpart, the `ip` command.
Employing the Route Command
The venerable `route` command wields power in molding the Linux routing table. The incantation for adding a route using this command necessitates administrative privileges and assumes the following form:
```shell
route add -net <destination IP address> netmask <network mask> gw <gateway IP address>
```For instance, to forge a route for the network 10.0.0.0/8 with a gateway of 10.1.1.1, one would summon the following command:
```shell
route add -net 10.0.0.0 netmask 255.0.0.0 gw 10.1.1.1
```Harnessing the IP Command
The more contemporary `ip` command offers a feature-rich alternative to the `route` command for route addition. In its service, the following incantation, requiring root privileges, reigns supreme:
```shell
ip route add <destination IP address>/<network mask> via <gateway IP address>
```For example, to chart a course for the network 10.0.0.0/8 with a gateway of 10.1.1.1, the following command unfurls:
```shell
ip route add 10.0.0.0/8 via 10.1.1.1
```Crafting Routes with Staying Power
Both the `route` and `ip` commands, while temporarily impacting the routing table, don’t etch routes in stone. To impart permanence, one must inscribe them into the hallowed scrolls of the routing configuration file, often dwelling at /etc/network/interfaces.
For the `route` command, permanence emerges from appending this line to the configuration file’s end:
```shell
up route add -net <destination IP address> netmask <network mask> gw <gateway IP address>
```As an exemplar, to bestow permanence upon a route for the network 10.0.0.0/8 with a gateway of 10.1.1.1, the following line assumes significance:
```shell
up route add -net 10.0.0.0 netmask 255.0.0.0 gw 10.1.1.1
```For the `ip` command, the act of crafting permanent routes entails appending this line to the configuration file:
```shell
up ip route add <destination IP address>/<network mask> via <gateway IP address>
```In a parallel scenario, to perpetuate a route for the network 10.0.0.0/8 with a gateway of 10.1.1.1, the following line becomes a fixture:
```shell
up ip route add 10.0.0.0/8 via 10.1.1.1
```Post-configuration file alterations, the networking service beckons a restart for changes to take root:
```shell
service networking restart
```Scrutinizing the Routes
To ensure the route’s successful incorporation, inspection is prudent. The `route` and `ip` commands serve as trusted scrutineers, allowing network administrators to peer into the intricacies of the routing landscape.

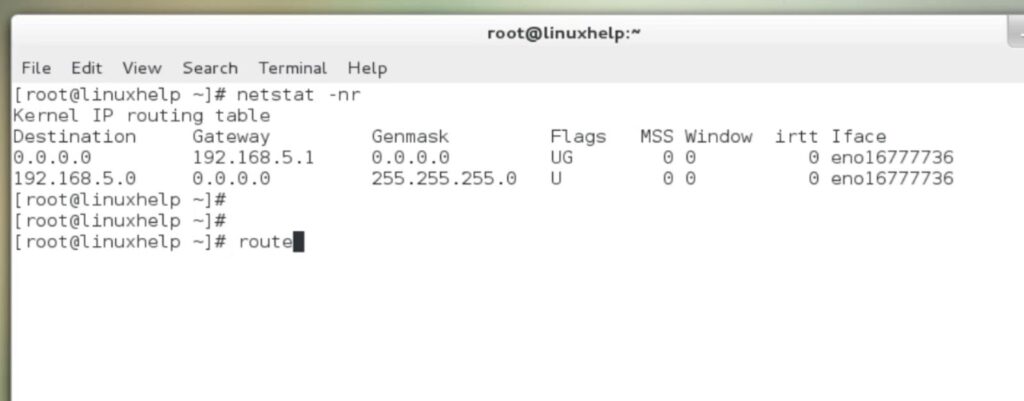

To lay bare the routing table via the `route` command, one simply executes:
```shell
route -n
```This command unfurls a comprehensive view of the routing tableau, presenting a clear and concise breakdown of destination IP addresses, network masks, and gateway IP addresses. It’s akin to gazing at a map that delineates the paths data packets take on their journey through the vast expanse of networks.
For a comparable revelation through the `ip` command, the following incantation is your guiding light:
```shell
ip route show
```Executing this command unveils a similar tableau, each row offering valuable insights into the routing tapestry. Destination IP addresses, network masks, and gateway IP addresses stand as signposts along the data highways, providing administrators with the knowledge needed to ensure efficient and reliable data transmission. These commands, akin to the watchful sentinels of networking, aid in maintaining the integrity of the routing infrastructure, allowing for seamless connectivity and optimal performance.
Conclusion
In closing, the addition of routes in Linux embodies a pivotal facet of its networking architecture, akin to building the intricate pathways of a vast digital city. Armed with the knowledge of route addition, network administrators can venture forth confidently, much like urban planners charting new roads and bridges.
- With the power of route addition, one can seamlessly connect with remote networks, bridging the gaps that might otherwise hinder communication and collaboration. It’s akin to constructing reliable bridges over chasms, enabling data to flow freely;
- Moreover, route addition serves as a performance-enhancing tool, allowing administrators to optimize network speed and efficiency. It’s like widening highways to accommodate faster traffic, ensuring that data packets reach their destinations swiftly and without congestion;
- Additionally, route addition can quell routing disputes, acting as a peacemaker in the digital realm. It’s comparable to mediating conflicts between different routes, ensuring that data takes the most harmonious and efficient path to its destination.
Whether you opt for the venerable `route` command or the more modern `ip` counterpart, the process unfurls in a straightforward manner, making it accessible to both seasoned Linux veterans and newcomers alike. Armed with this knowledge, you can navigate the intricate web of Linux networking with confidence, knowing that you have the tools to connect, optimize, and resolve in your hands.
